Your EV charger keeps tripping the breaker

Start with the charger's current setting, not the breaker. By far the most common cause of repeated trips in a rental is a charger drawing more than the circuit is allowed to supply continuously — and that is a setting you can change in about a minute, for free.

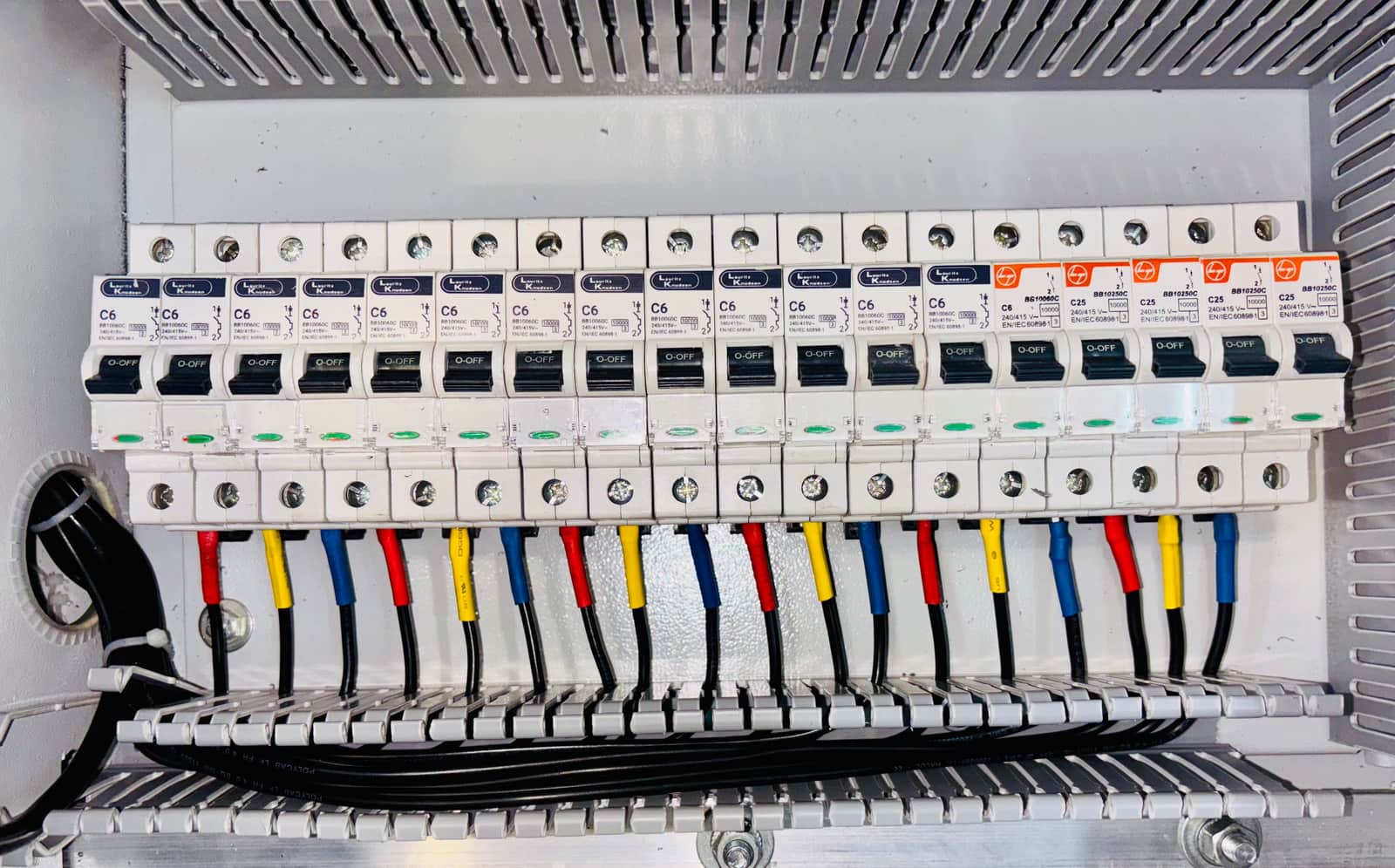

A breaker that trips is doing its job. It is not a fault to work around, and the answer is never a bigger breaker — that is somebody else's wiring and replacing it would remove the protection rather than fix the cause.

1. Is the charger set above 80% of the breaker rating?

This is the one. A load running three hours or more is continuous, and the National Electrical Code caps continuous load at 80% of the circuit rating. Overnight charging is continuous by any definition.

A charger set to 40 amps on a 30 amp dryer circuit will trip, reliably, and no adapter changes that — the adapter alters the shape of the connection and nothing about what the circuit can carry. If your charger has no way to be set lower, that is the actual problem, and an adjustable unit is the fix.

2. Is something else on the same circuit?

In older rental buildings a single circuit serves more than you would expect. A charger plus a space heater, a dryer mid-cycle, or a window air conditioner on the same run is arithmetic the breaker is entitled to object to.

The classic version of this is the shared laundry circuit: the car charges fine until somebody starts the dryer. If you are sharing a 240V circuit with an appliance, the correct device is an automatic splitter that guarantees only one load draws at a time and carries its own breaker — not a passive Y-adapter, which lets both draw and is exactly how this trip happens.

3. Is it a GFCI trip rather than an overload?

Worth separating, because it looks identical from the outside and has a completely different cause. EV charging equipment has its own ground-fault detection built in, and on a circuit that also has a GFCI breaker or receptacle the two occasionally interact and produce nuisance trips.

• Overload trips take time. The breaker usually holds for a while and goes during the session, often under load.
• GFCI trips are usually immediate — at plug-in or within the first moments — and often repeat at the same point every time.
• A GFCI trip is not fixed by lowering the amperage. If reducing current changes nothing, this is the likelier cause.
• Report it rather than working around it. Persistent GFCI tripping is a legitimate thing to raise with the building; it is not something to defeat.

4. Is the circuit or receptacle actually sound?

Older wiring, a worn receptacle, or a connection that has been loosening for years will misbehave under a load that runs for eight hours — which is a far harder duty than anything else plugged into a residential circuit. If the trips came with heat, discoloration or a smell, stop and read hot outlet or melted plug before doing anything else.

Quick picks

Ranked, with the reasoning underneath. Tap any row to jump to that write-up; tap the price to check it on Amazon. Prices come from the live layer, never from this page.

#	Product	Best for	Type	Price
1	Grizzl-E Mini Connect Portable ChargerAdjustable from 7 to 40 amps and shipped with four plug adapters, which is the closest thing to a unit that fits whatever outlet you turn out to have.	Not knowing your outlet yet	Adjustable Level 1 and 2 EVSE	Check price#ad
2	Splitvolt Splitter Switch (NEMA 10-30, 240V, 24A)The one device that makes a shared older dryer outlet a legitimate EV circuit — it switches automatically and carries its own breaker.	An older 3-prong dryer outlet	Automatic 240V splitter	Check price#ad
3	NeoCharge Smart Splitter (NEMA 14-30)The four-prong equivalent: it shares a modern dryer circuit, prioritizes the dryer, and switches to the car when the laundry finishes.	A modern 4-prong dryer outlet	Automatic 240V splitter	Check price#ad

#1 · Not knowing your outlet yet

Grizzl-E Mini Connect Portable Charger

Adjustable from 7 to 40 amps and shipped with four plug adapters, which is the closest thing to a unit that fits whatever outlet you turn out to have.

Published specifications for the Grizzl-E Mini Connect Portable Charger, each linked to its source

Adjustable current	7A to 40A (9.6 kW maximum)source
Voltage	Automatically detects 120V (Level 1) or 240V (Level 2)source
Cable length	25 ft (7.6 m)source
Plug and adapters	NEMA 14-50 plug plus four included electrical adapterssource
Connector	J1772 or Tesla (NACS) versionssource
Enclosure	UL Type 4 / IP67 ratedsource
Certification	UL tested and certified, Energy Star certifiedsource

What those numbers mean

The adjustable current is the feature that matters to a renter, and it is not a convenience. A 30 amp dryer circuit legally supports 24 amps of continuous EV load; a unit that can be set to 24 amps can use that circuit, and a fixed 40 amp unit cannot.

25 ft of cable is nine feet more than the common 16 ft, and nine feet is frequently the difference between reaching the car and not.

IP67 and a UL Type 4 enclosure describe the unit's own weather tolerance. They say nothing about the outlet it plugs into, which is usually the part that is not weather-rated.

What it does well

• 7-40A adjustment means one unit fits a 15, 20, 30 or 50 amp circuit
• 25 ft cable is among the longest on a portable unit
• Four plug adapters included, so an outlet change does not mean a new charger
• Available with either a J1772 or a NACS connector

What it does not

• Costs meaningfully more than a fixed-amperage unit that does one job
• The bundled adapters make it easy to plug into a circuit you have not actually checked

Skip this one if: You know exactly which outlet you have, it is not changing, and you would rather put the money into a longer cable than into adjustability you will set once and never touch.

Check price on Amazon

#ad · how this is funded

#2 · An older 3-prong dryer outlet

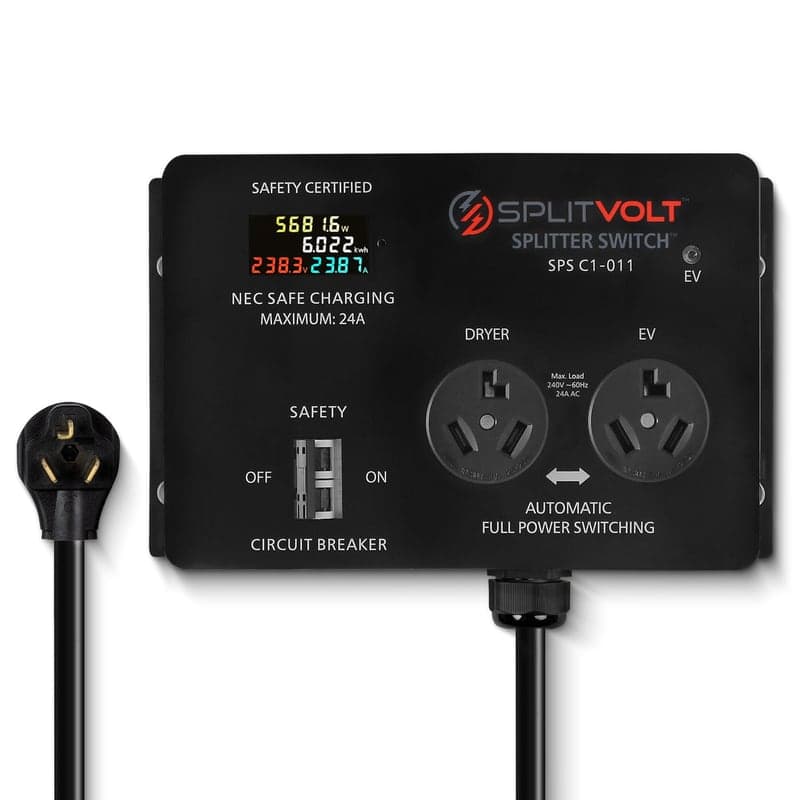

Splitvolt Splitter Switch (NEMA 10-30, 240V, 24A)

The one device that makes a shared older dryer outlet a legitimate EV circuit — it switches automatically and carries its own breaker.

Published specifications for the Splitvolt Splitter Switch (NEMA 10-30, 240V, 24A), each linked to its source

Input plug	NEMA 10-30 malesource
Output sockets	Two NEMA 10-30 female outlets — one for the dryer, one for the EV chargersource
Rating	240V ~ 60Hz, 24A AC maximum loadsource
Protection	Integrated 24A circuit breaker with easy resetsource
Switching	Automated power switching between the dryer and EV power socketssource
Certification	Conforms to UL 60730-1, certified to CSA E60730-1, cETLus listed Intertek 5021938source
Installation	No electrical installation required — plug and playsource

What those numbers mean

24A is the number to design around, and it is not the manufacturer being cautious. A 30 amp circuit supports 24 amps of continuous load under the 80% rule, and continuous is exactly what EV charging is.

Automatic switching is what makes this a device rather than a Y-splitter. Both loads on one 30 amp circuit at once would trip the breaker at best; the switch guarantees only one draws at a time.

The integrated 24A breaker is the part that earns the trust. It means the splitter protects the circuit itself instead of relying only on a panel breaker you cannot see and wiring you cannot inspect.

What it does well

• Plugs in — genuinely no electrician, no permit, no landlord construction
• Its own 24A breaker rather than trusting the panel alone
• cETLus listed with the Intertek file number published
• Automatic switching, so the dryer keeps priority without anybody replugging anything

What it does not

• 24A caps charging at roughly 5.7 kW, well below a NEMA 14-50's ceiling
• NEMA 10-30 is an ungrounded three-wire configuration, which is a real caveat rather than a formality
• Only useful if you can physically reach the laundry outlet from the car

Skip this one if: Your dryer outlet is the modern four-prong NEMA 14-30. Buy the four-prong splitter instead — this one will not fit, and forcing the fit is exactly the wrong instinct.

Check price on Amazon

#ad · how this is funded

#3 · A modern 4-prong dryer outlet

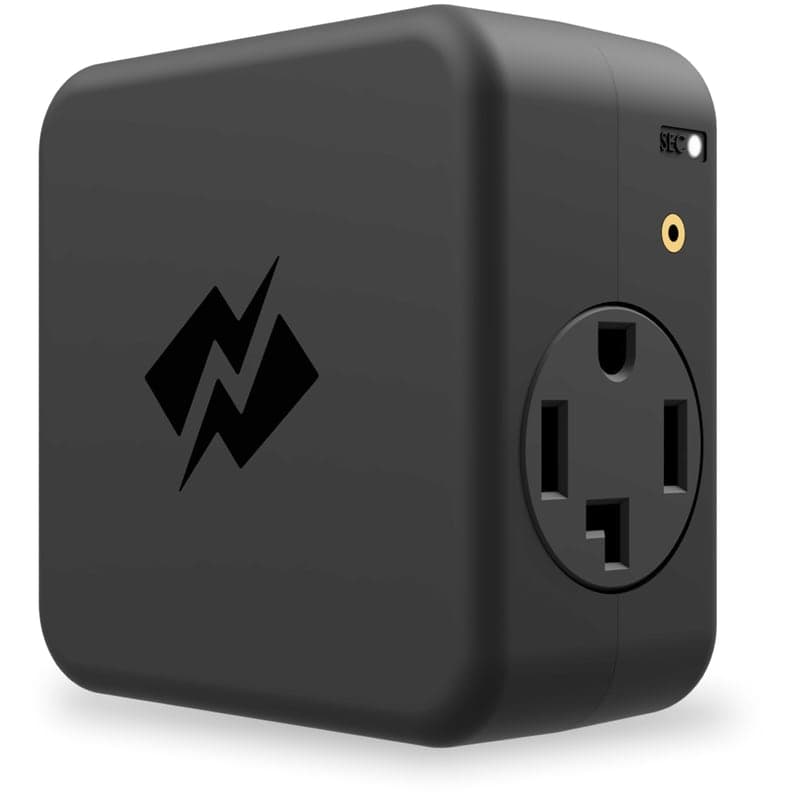

NeoCharge Smart Splitter (NEMA 14-30)

The four-prong equivalent: it shares a modern dryer circuit, prioritizes the dryer, and switches to the car when the laundry finishes.

Published specifications for the NeoCharge Smart Splitter (NEMA 14-30), each linked to its source

Outlet type	Plugs into an existing four-prong 220/240V NEMA 14-30 dryer outletsource
EV current limit	The EV or charger must be set to 24 amps or less when sharing with a dryersource
Switching	Auto-switching prioritizes the dryer and switches to EV charging when it finishessource
Certification	UL safety certified and NEC compliantsource
Installation	No electrician needed — plug and playsource

What those numbers mean

NEMA 14-30 is the four-prong dryer outlet standard in homes built after the mid-1990s, so which splitter you need is really a question about the age of the building.

The 24 amp ceiling is the same arithmetic as the three-prong version, for the same reason: 30 amp circuit, 80% continuous rule.

Dryer priority is the right default for a shared household. A dryer cycle is an hour; a charging session has all night to finish.

What it does well

• Works with the grounded four-prong outlet, which is the safer configuration to begin with
• UL safety certified
• Auto-switching, so nobody has to remember to unplug anything

What it does not

• Same 24A ceiling as any 30 amp circuit sharing arrangement
• Wrong device for a three-prong NEMA 10-30 outlet

Skip this one if: Your building predates the four-prong standard and the laundry outlet has three prongs. That is a NEMA 10-30 and needs the three-prong splitter instead.

Check price on Amazon

#ad · how this is funded

• Do not use a plug adapter to reach a bigger outlet while leaving the amperage where it was. The adapter fits and changes nothing electrically.
• Do not fit a passive Y-splitter on a shared circuit. Both loads draw at once, which is the trip you are trying to stop.
• Do not repeatedly reset and retry. A breaker that trips under the same conditions is reporting a real condition.

If the trips stop when you drop the charger to 24 amps, nothing is wrong. You have found the real capacity of the circuit you can reach, and 24 amps at 240V is about 5.8 kW — roughly 200 miles returned over a twelve-hour night. That is a full charge for most cars, and the slower setting is also easier on every connection in the chain.

Charging slower is the cheapest reliability measure in this whole subject, and overnight it costs you almost nothing. How long charging takes has the numbers.
